Charlotte, NC Crawl Space Guide

Crawl Space Encapsulation Explained

Encapsulation is a system, not a single product. Understanding the parts makes proposals far easier to read and compare.

Published by CrawlLock. Published September 6, 2026.

What encapsulation means

Encapsulation is the practice of separating the house from the damp ground and outside air below it. In most designs that means a durable barrier over the soil and up the foundation walls, sealed at the seams and at penetrations, combined with a plan for controlling the humidity of the air that remains in that space.

The term is used loosely in the market. One company may mean a sealed and conditioned crawl space with drainage. Another may mean a thicker liner over the dirt. That is why the side by side comparison matters more than the word on the proposal.

What a proposed system may include

Not every project includes every item. A responsible proposal states which of these are in scope and which are excluded.

  • Cleanup and removal of debris, old plastic, or fallen insulation.
  • Addressing water entry, which can include grading, gutters, or drainage.
  • A ground barrier, with a stated thickness and seam method.
  • Barrier attachment and termination on the foundation walls and piers.
  • Sealing of vents, the access door, and penetrations, where the design calls for it.
  • Insulation at the walls or the rim joist, depending on the design and code.
  • Humidity control equipment, with a drain path and a power source.
  • Access provisions, lighting, or a service platform in some proposals.
Cutaway diagram of a residential crawl spaceA cross section showing soil under the house, a sealed vapor barrier over the ground and up the foundation walls, concrete block foundation walls with rim joist and floor framing above, an optional perimeter drain and sump pump below the soil line, optional wall insulation, and optional conditioning equipment such as a dehumidifier with a drain line.Finished floor aboveFloor joists and rim joistExterior soil and gradingSealed vapor barrier, ground and wallsSoil beneath the barrierPerimeter drain (situation dependent)Sump basin and pump (situation dependent)Wall insulation (situation dependent)Conditioning equipment and drain line (situation dependent)Vent, sealedin some designs
Illustrative diagram for homeowner education. Dashed components depend on the individual home, on local requirements, and on a provider assessment. Not a photo of a CrawlLock project.

How this differs from laying plastic on the ground

Loose sheeting over the soil is a partial measure. It reduces moisture rising directly from that soil, but it is usually thin, unsealed, easily torn by service work, and does nothing about outside air, vents, water entry, or the humidity of the space itself.

ItemPlastic laid on the groundSealed system
CoverageSoil only, often with gapsSoil plus wall and pier terminations in most designs
SeamsOverlapped, usually not sealedTaped, sealed, or mechanically joined per specification
Air and humidityNot addressedVents and penetrations addressed, humidity managed
Water entryNot addressedAssessed first, and handled by drainage work if needed
DurabilityThin films tear during service visitsHeavier material and attachment intended to last

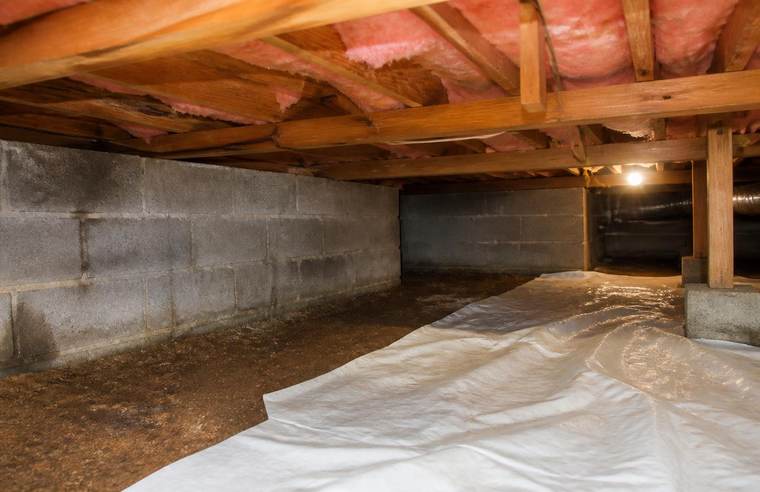

Interior of a crawl space with a dirt floor partly covered by loose white plastic sheeting, concrete block walls, and insulated floor joists above

Illustrative photograph of a crawl space with partial ground sheeting. Not a CrawlLock project.

When an assessment is needed first

Sealing a space that still takes on water can hide the problem instead of solving it. An assessment should come first when any of the following is true.

  • Water pools on the ground or the soil stays wet between dry spells.
  • There are signs of a plumbing leak, such as a wet area under a bathroom.
  • Wood shows staining, softness, or visible growth, or you suspect pest damage.
  • Ductwork, wiring, or the water heater below the floor looks damaged.
  • Grading slopes toward the house or downspouts discharge next to the foundation.

The limits of encapsulation

Encapsulation is not a universal fix and should not be recommended for every problem.

  • It does not repair a plumbing leak, a roof leak, or failed grading.
  • It does not by itself stop water that enters under pressure during storms.
  • It does not repair damaged framing, and it does not replace pest treatment.
  • It does not remove existing growth on wood surfaces on its own.
  • Equipment that manages humidity needs power, a working drain, filter changes, and eventual replacement.

Any claim about energy savings, comfort, air quality, or health outcomes depends on the individual home. We do not publish savings figures we cannot support. The general principle behind this work is moisture control, which the EPA mold course covers in its chapter on why and where mold grows.

Questions to ask an installer

  1. What did you find during your assessment, and what did you measure?
  2. Where is the water coming from, and how does your scope address that source?
  3. What is the barrier material, its thickness, and how are seams joined?
  4. How far up the walls and piers does the barrier run, and how is it attached?
  5. Which vents and penetrations get sealed, and what happens to combustion air?
  6. Is insulation included, where, and does it satisfy the applicable code?
  7. What equipment is proposed, where does it drain, and who provides power?
  8. Are permits or inspections required for this scope in my jurisdiction?
  9. What is excluded, and what would trigger a change order?
  10. Who holds each warranty, what does it cover, and what maintenance is required?

Building code requirements for crawl spaces in North Carolina are administered by the North Carolina Office of State Fire Marshal, and local jurisdictions handle permits and inspections. Ask your installer to confirm what applies at your address rather than relying on a general article.
